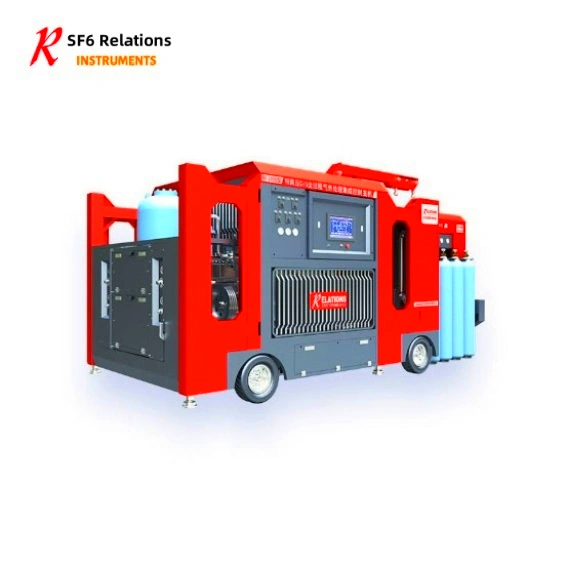

RF-1000 UHV GIS Integrated Gas Handling System
Integrated Workstation • Enhanced Emergency Response
Recovery Rate: 120 m³/h
Booster: 5 m³/h @ liquid
Vacuum Pumping Rate: 17 m³/h
Ultimate Vacuum: ≤10 Pa
Buffer Tank: 300 L, Design Pressure 5 MPa
Filling Rate: 250 kg/h
Product Introduction
The RF-1000 UHV GIS Integrated Gas Handling System is designed and manufactured by our company. It adopts the design concept of “integrated host • split modules • intelligent IoT”, focusing on solving the on-site installation, maintenance, and emergency repair work of 1000kV ultra-high voltage GIS. It mainly consists of an ultra-high voltage GIS whole-process gas service treatment integrated control host, a front – end vacuum pumping device, a front – end gas charging device, a front – end recovery device, an external sulfur hexafluoride storage tank, a switch pressure identification device, and an on – site operation digital management and control system. The machine is designed and manufactured with a modular combination, featuring a compact and reasonable structure, a beautiful and generous appearance, simple and clear operation, and convenient use and maintenance. Its functions include vacuum pumping, gas recovery, gas charging, pressure – charging storage tanks, filling gas cylinders, etc. for ultra-high voltage GIS sulfur hexafluoride electrical equipment. The UHV GIS Integrated Gas Handling System adopts integrated intelligent control, which can realize the one – key operation function on the touch screen and the real – time interconnection of recovery, gas charging, and vacuum pumping data. The data is sent to the ultra-high voltage intelligent management and control platform through the Internet of Things for processing.
Main Features
1. Vacuum pumping and vacuum degree detection of the system body and external pipelines
2. Large – flow recovery and storage of sulfur hexafluoride gas
3. Multi – cylinder flipping and vaporization for large – flow gas charging function
4. Liquid sulfur hexafluoride filling function, filling a 40L gas cylinder with 50kg in (5 – 8) minutes
5. The RF-1000 UHV GIS Integrated Gas Handling System adopts a digital management and control system, equipped with a wireless transmission module, realizing the linkage control between the host and front – end equipment and the real – time transmission of operation parameters. It has the functions of self – walking and self – loading and unloading, and has the ability of electric – driven walking and transfer operation and self – loading and unloading.
6. It has the ability to hoist on – site tools with a hoisting weight of 1.5t
7. The recovery and gas charging pipelines are separated, without cross – contamination, and both can filter impurities such as moisture, oil, and dust in the gas.
8. The 40L gas cylinders are automatically flipped, four cylinders in a group, with two groups in total, which can be used alternately without interruption.
9. The RF-1000 UHV GIS Integrated Gas Handling System uses electronic weighing equipment to measure the recovery and gas charging amounts.
10. The gas charging pipeline is equipped with a residual gas recovery compressor to reduce the gas residue in the gas cylinder.
11. The power supply is centrally supplied and has the function of automatic phase – sequence conversion.
12. The host data of the RF-1000 UHV GIS Integrated Gas Handling System can transmit the gas charging, recovery, and vacuum pumping data to the ultra – high voltage intelligent platform in real – time.
Product Parameters
Parameter Name |
Parameter Value |
Recovery Rate |
120 m³/h |
Booster |
5 m³/h @ liquid |
Vacuum Pumping Rate |
17 m³/h |
Ultimate Vacuum |
≤10 Pa |
Buffer Tank |
300 L, Design Pressure 5 MPa |
Filling Rate |
250 kg/h |
Annual Leakage Rate |
<0.5% |
Dust Filtration |
<1 μm |
Self-loading Capacity |
8000 kg |
Self-propelled Range |
3 km |
Lifting Capacity |
≤1500 kg |
Dimensions |
4850×1800×2700 mm (L×W×H) |
