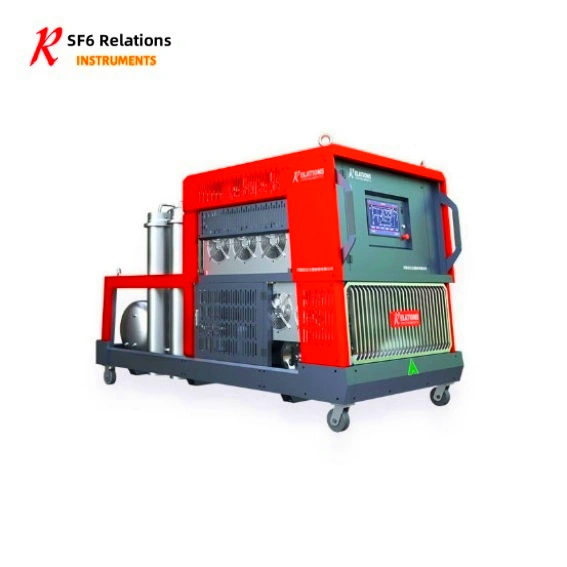

RF-151M Mixed Insulating Gas Recovery and Separation Equipment

Product Introduction

The RF-151M hybrid insulating gas recovery and separation equipment is a device used for the rapid recovery and separation of SF₆/N₂ and other hybrid insulating gases. The device adopts a modular design, which is easy to integrate. Multiple modules can be combined to meet different on – site operation requirements. It is suitable for on – site recovery and separation operations of medium – low voltage switches (10 – 40.5) kV gas – filled cabinets, high – voltage (72.5 – 220) kV porcelain post circuit breakers, 500 kV porcelain post circuit breakers, and 110 kV gas – insulated switchgear (GIS).

Main Features

1. Gas pretreatment function: It can filter and adsorb micro – water, toxic and harmful decomposition products, and impurities in the mixed gas.

2. The RF-151M hybrid insulating gas recovery and separation equipment recovers and rapidly separates SF₆/N₂ mixed gas. After separation and purification, the volume content of SF₆ can reach over 99%, and the SF₆ content in N₂ is less than 100 ppm.

3. The separated SF₆ gas is compressed and stored in an external container.

4. The RF-151M hybrid insulating gas recovery and separation equipment has the function of pure SF₆ gas recovery, enabling one device to operate in multiple scenarios.

Product Parameters
