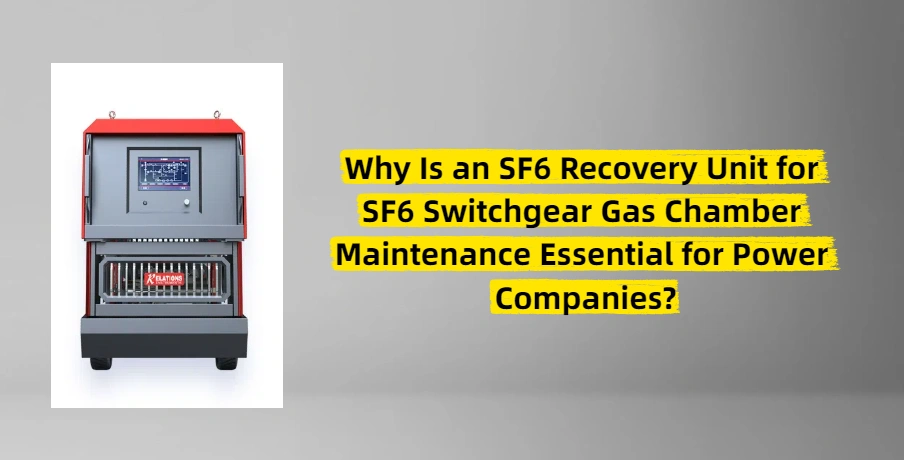

Why Is an SF6 Recovery Unit for SF6 Switchgear Gas Chamber Maintenance Essential for Power Companies?

SF6 gas (sulfur hexafluoride) is widely used in power systems, especially in SF6 switchgear gas chambers, due to its excellent insulation and arc-extinguishing properties. It ensures stable operation of high-voltage equipment, but SF6 is also a strong greenhouse gas—its global warming potential (GWP) is 23,500 times that of CO₂, with a lifespan of over 3,200 years in the atmosphere. Meanwhile, SF6 switchgear gas chambers require regular maintenance to prevent gas leakage, moisture intrusion, and impurity accumulation, which can damage equipment performance. In this context, the SF6 Recovery Unit for SF6 switchgear gas chamber maintenance has become essential equipment for power companies, combining environmental protection, equipment protection, and cost savings.

1. Why SF6 Recovery Units Are Indispensable for Switchgear Gas Chamber Maintenance

1.1 Compliance with Environmental Regulations

Global environmental policies (such as the Kyoto Protocol and EU F-Gas Regulation) and domestic standards (e.g., China’s GB/T 12022-2014) strictly restrict SF6 emissions. Without an SF6 recovery unit, gas leakage during switchgear maintenance (e.g., disassembly, overhaul) will lead to non-compliance, resulting in fines and reputational damage. A high-efficiency SF6 recovery unit can recover over 99% of SF6 from the gas chamber, minimizing emissions to meet environmental requirements.

1.2 Protection of Switchgear Performance

Moisture, air, and impurities in SF6 switchgear gas chambers degrade the gas’s insulation and arc-extinguishing capabilities, increasing the risk of equipment breakdowns (e.g., flashovers, short circuits). During maintenance, an SF6 recovery unit not only recovers gas but also purifies it (removing moisture and impurities) before re-injecting it into the chamber. This maintains the gas’s quality, ensuring the switchgear operates safely and extends its service life.

1.3 Cost Reduction Through Gas Reuse

SF6 is a high-cost specialty gas. Disposing of used SF6 and purchasing new gas significantly increases maintenance costs. An SF6 recovery unit allows recovered gas to be purified and reused, reducing reliance on new gas purchases. For power companies with large switchgear fleets, this translates to substantial long-term cost savings.

2. Core Functions and Working Principle of SF6 Recovery Units

2.1 Key Functions for Maintenance

A professional SF6 Recovery Unit for SF6 switchgear gas chamber maintenance typically includes four core functions:

• Gas Recovery: Extracts SF6 from the switchgear gas chamber using a high-pressure compressor, even when the chamber pressure is low (down to 0.1 bar).
• Gas Purification: Removes moisture (to ≤50 ppm) and solid impurities (to ≤10 μm) via drying filters and precision separators, ensuring reused gas meets IEC 60376 standards.
• Gas Storage: Stores recovered SF6 in high-pressure stainless steel tanks (with pressure up to 50 bar) that are corrosion-resistant and leak-proof.
• Re-injection: Re-injects purified SF6 back into the gas chamber at a controlled pressure, avoiding overpressure damage to the equipment.

2.2 Simple Working Principle

The unit operates in four stages:

• Compression: A low-temperature compressor sucks SF6 from the gas chamber and compresses it to high pressure.
• Condensation: The compressed SF6 passes through a condenser to reduce its temperature, converting it into a liquid state for easier storage.
• Purification: Liquid SF6 flows through a drying filter to remove moisture and impurities, then vaporizes back into a gas.
• Storage/Re-injection: The purified gas is either stored in a tank or re-injected into the switchgear gas chamber based on maintenance needs.

3. How to Select the Right SF6 Recovery Unit

Choosing a suitable unit directly affects maintenance efficiency and gas recovery quality. Focus on these factors:

• Recovery Efficiency: Opt for units with a recovery rate ≥99% and a handling capacity matching your switchgear size (e.g., 2-5 m³/h for medium-voltage switchgear).
• Purification Performance: Check moisture and impurity removal limits—units with dual-stage drying filters are more reliable for humid environments.
• Portability: For on-site maintenance, select compact, wheeled units (weight ≤50 kg) with easy-to-carry handles, as switchgear is often installed in scattered locations (e.g., substations, industrial plants).
• Compliance and Certification: Ensure the unit meets international standards (IEC 62271-4) and has certifications like CE or ISO, guaranteeing safety and quality.
• After-Sales Support: Choose brands that offer 1-2 years of warranty, timely spare parts supply (e.g., filters, gaskets), and on-site maintenance training.

4. Best Practices for Using and Maintaining SF6 Recovery Units

4.1 Operation Tips

Pre-operation Check: Inspect the unit’s airtightness (using a leak detector), calibrate pressure gauges and thermometers, and confirm the storage tank is empty or has sufficient capacity.

During Operation: Monitor pressure and temperature in real time—avoid exceeding the compressor’s maximum working pressure (usually 80 bar) to prevent equipment damage.

Post-operation Handling: After recovery, purge residual gas in the hoses, clean the quick-connect interfaces, and record recovery data (e.g., gas volume, purity) for traceability.

4.2 Routine Maintenance

Replace drying filters every 50-100 hours of operation to maintain purification efficiency.

Calibrate pressure sensors and flow meters annually to ensure accurate readings.

Store the unit in a dry, well-ventilated area (temperature 5-40℃) and avoid exposure to dust or corrosive substances.

The SF6 Recovery Unit for SF6 switchgear gas chamber maintenance is no longer optional but a mandatory tool for power companies. It not only helps comply with environmental regulations and protect switchgear performance but also reduces maintenance costs through gas reuse. As the power industry moves toward “carbon neutrality,” future SF6 recovery units will integrate intelligent features (e.g., remote monitoring, automatic fault alerts) to further improve maintenance efficiency. When selecting and using these units, prioritize efficiency, compliance, and proper maintenance to ensure long-term, stable support for SF6 switchgear operations.
